#35 Connector Link - ANSI Standard Roller Chain

#35 Connector Link for Precision Roller Chain

Premium ANSI standard connector link for #35 precision roller chain. Essential for joining chain ends together to create continuous loops or for quick repairs and replacements in agricultural equipment, conveyors, and light-duty machinery.

Key Features:

• ANSI standard compliant - works with all standard #35 roller chain
• Spring clip design for easy installation and removal without tools
• Heat-treated components for maximum strength and durability
• Precision manufactured for proper fit and smooth operation
• Reusable for multiple installations when properly handled
• Sold individually

ANSI Specifications:

• Chain Size: #35-1 Single Strand
• Pitch (P): 0.375"
• Roller Width (W): 0.188"
• Pin Diameter: 0.141"

What is a Connector Link?

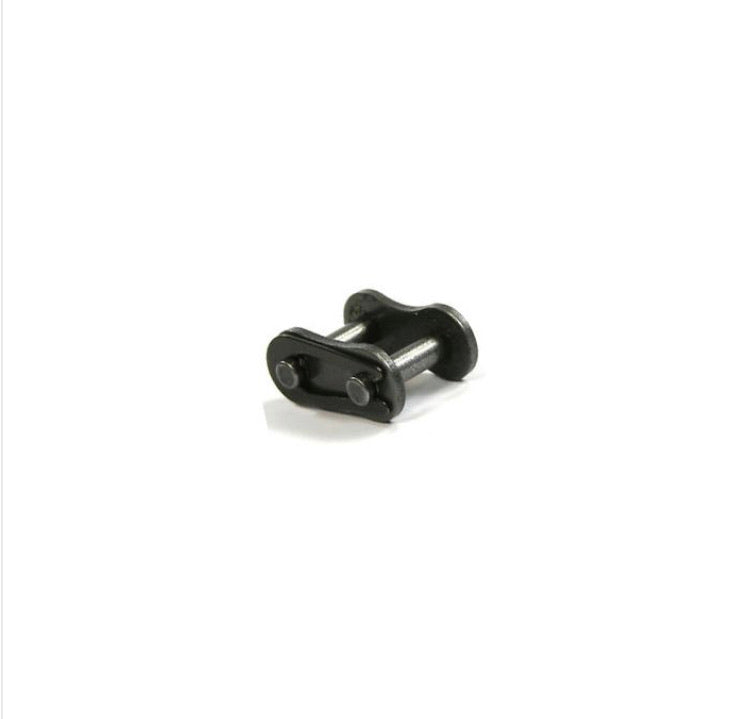

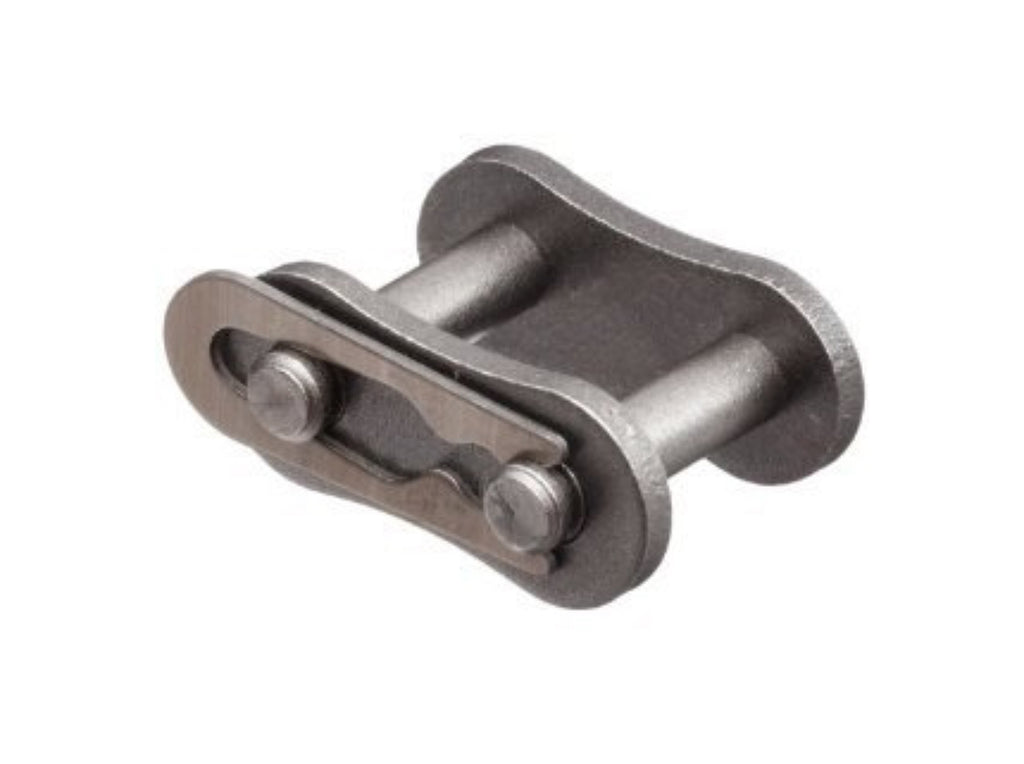

A connector link (also called a master link or connecting link) is a special chain link designed for easy installation and removal. It consists of two outer plates, two pins, and a spring clip that holds the assembly together. This design allows you to join chain ends or make repairs without special tools - simply snap the spring clip into place.

Installation Tips:

• Ensure the closed end of the spring clip faces the direction of chain travel
• Verify the clip is fully seated in the pin grooves
• Inspect the clip regularly for wear or damage
• Replace if the clip shows signs of fatigue or doesn't seat properly

Common Applications:

• Light-duty conveyors and material handling equipment
• Small agricultural equipment and machinery
• Go-karts and mini bikes
• Light industrial drives and transmissions
• Emergency repairs and field service

Expert Help from the Midwest

Based in the heart of American agriculture, we bring over 17 years of hands-on experience specializing in agricultural chain systems. Need help selecting the right connector link or have questions about installation? Call us at 815-973-2648 or 800-648-5429. We're here to help you find the right solution.

Matching offset links and roller chain also available.
