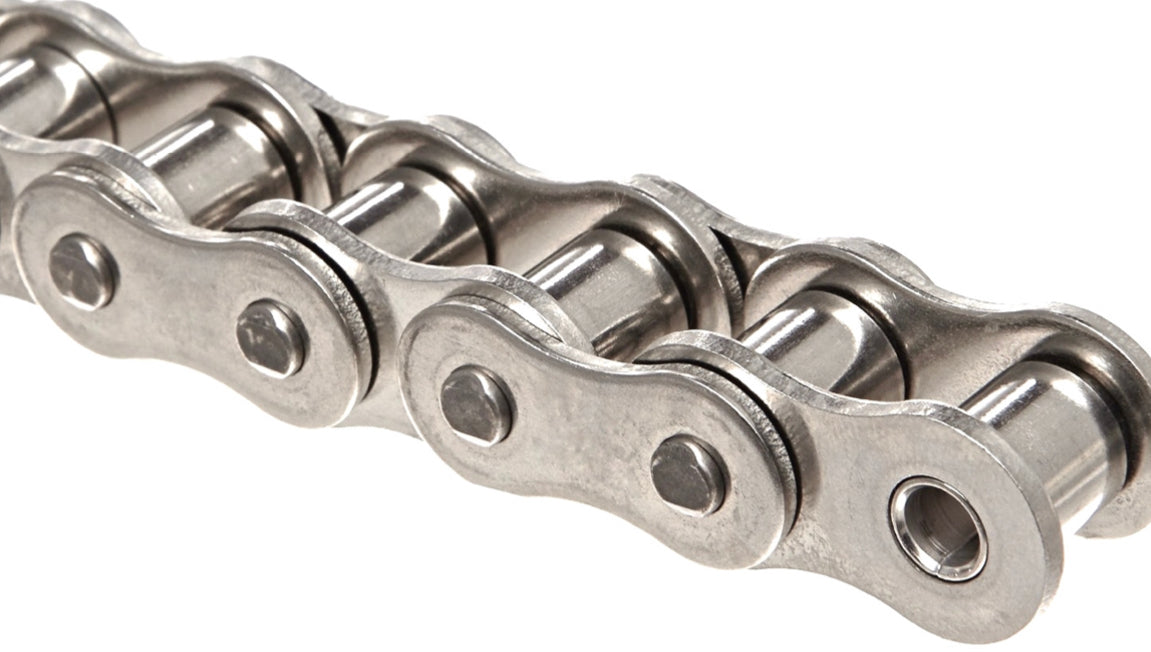

35 Stainless Steel Roller Chain

$0.00 $0.00

SKU: 35-SS

  • 35-1 Single Strand-Stainless Steel 304 Series
  • Pitch (P) 3/8''
  • Inner Width 3/16''
  • Roller Diameter (D) .200”
  • Pin Diameter (E) .141”
  • Link Plate Height (H) .356”
  • Link Plate Thickness (T) 0.050''
  • Average Tensile Strength: 2,320 lbs
  • Max Working Load: 485 lbs
  • No. Of Links Per 10 Feet: 320
  • One connector link per 10' coil
  • Meets all ANSI Standard

                            35 Roller Chain Dimensions

                            PRC ANSI Single Drawing

                            We supply 35 roller chain in a range of stock lengths including 10ft boxes, 50ft reels, and 100ft reels.  Farmchains.com offers a wide range of roller chain from your standard carbon steel materials to nickel plated and even the hard to find dacromet coated chain. Riveted construction is available for all sizes. Cottered construction is available for chain sizes 60 and larger.

                            For more information on 35 roller chain or to get a quote please contact us 800-648-5429 and we will be happy to assist you.  We are open 24/7 to help you.
                            Description

                            SKU: 35-SS

                            • 35-1 Single Strand-Stainless Steel 304 Series
                            • Pitch (P) 3/8''
                            • Inner Width 3/16''
                            • Roller Diameter (D) .200”
                            • Pin Diameter (E) .141”
                            • Link Plate Height (H) .356”
                            • Link Plate Thickness (T) 0.050''
                            • Average Tensile Strength: 2,320 lbs
                            • Max Working Load: 485 lbs
                            • No. Of Links Per 10 Feet: 320
                            • One connector link per 10' coil
                            • Meets all ANSI Standard

                                                      35 Roller Chain Dimensions

                                                      PRC ANSI Single Drawing

                                                      We supply 35 roller chain in a range of stock lengths including 10ft boxes, 50ft reels, and 100ft reels.  Farmchains.com offers a wide range of roller chain from your standard carbon steel materials to nickel plated and even the hard to find dacromet coated chain. Riveted construction is available for all sizes. Cottered construction is available for chain sizes 60 and larger.

                                                      For more information on 35 roller chain or to get a quote please contact us 800-648-5429 and we will be happy to assist you.  We are open 24/7 to help you.
