#40-2 Double Strand Connector Link - ANSI Standard Roller Chain

#40-2 Double Strand Connector Link for Precision Roller Chain

Premium ANSI standard connector link for #40-2 double strand precision roller chain. Essential for joining chain ends together to create continuous loops or for quick repairs and replacements in agricultural equipment, conveyors, and machinery requiring maximum load capacity.

Key Features:

• ANSI standard compliant - works with all standard #40 double strand roller chain
• Double strand design for exceptional strength and load capacity
• Spring clip design for easy installation and removal without tools
• Heat-treated components for maximum strength and durability
• Precision manufactured for proper fit and smooth operation
• Reusable for multiple installations when properly handled
• Sold individually

ANSI Specifications:

• Chain Size: #40-2 Double Strand
• Pitch (P): 0.500"
• Roller Width (W): 0.312"
• Pin Diameter: 0.156"

What is a Connector Link?

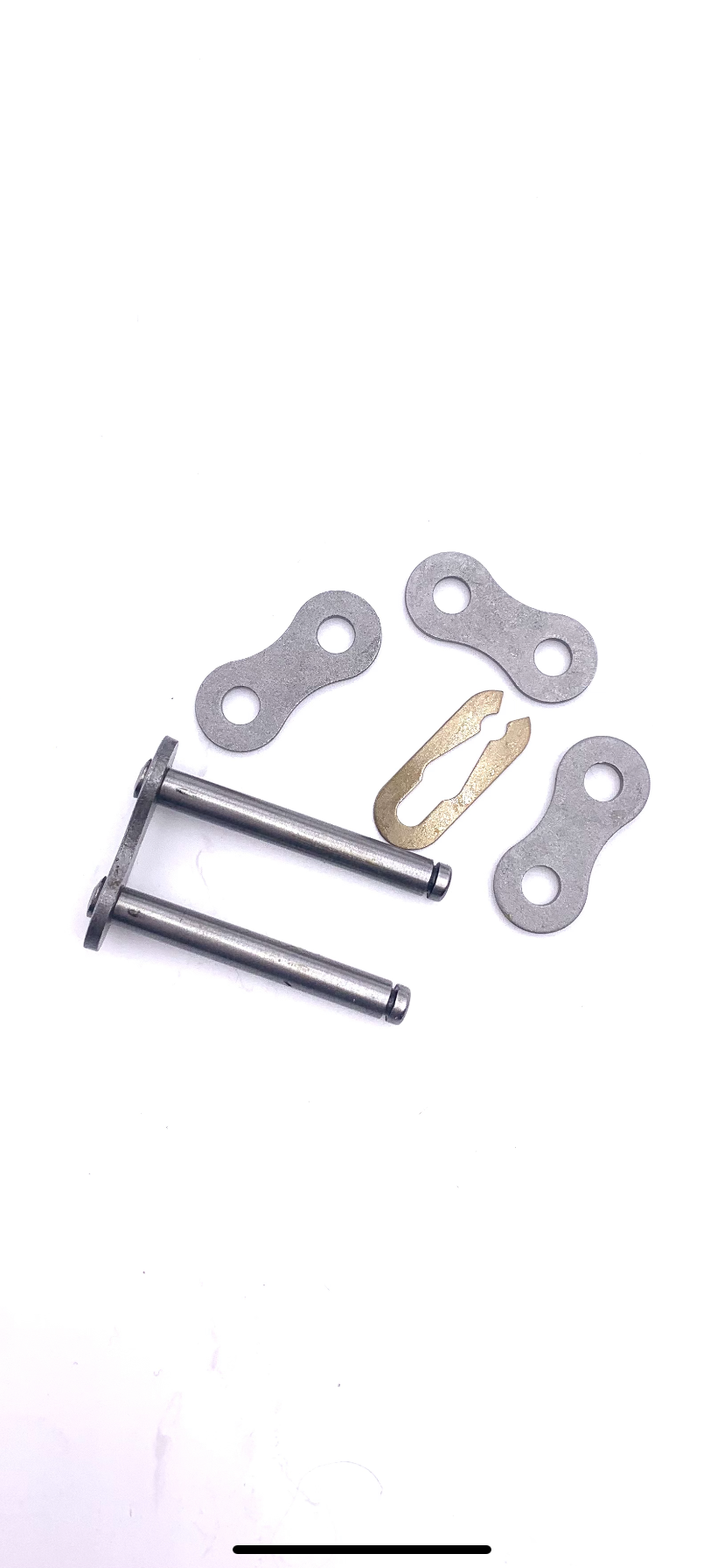

A connector link (also called a master link or connecting link) is a special chain link designed for easy installation and removal. It consists of two outer plates, two pins, and a spring clip that holds the assembly together. This design allows you to join chain ends or make repairs without special tools - simply snap the spring clip into place.

Installation Tips:

• Ensure the closed end of the spring clip faces the direction of chain travel
• Verify the clip is fully seated in the pin grooves
• Inspect the clip regularly for wear or damage
• Replace if the clip shows signs of fatigue or doesn't seat properly

Common Applications:

• Heavy-duty conveyors and material handling equipment
• Agricultural equipment requiring maximum strength
• Industrial drives and transmissions with high loads
• Emergency repairs and field service

Expert Help from the Midwest

Based in the heart of American agriculture, we bring over 17 years of hands-on experience specializing in agricultural chain systems. Need help selecting the right connector link or have questions about installation? Call us at 815-973-2648 or 800-648-5429. We're here to help you find the right solution.

Matching offset links and roller chain also available.
