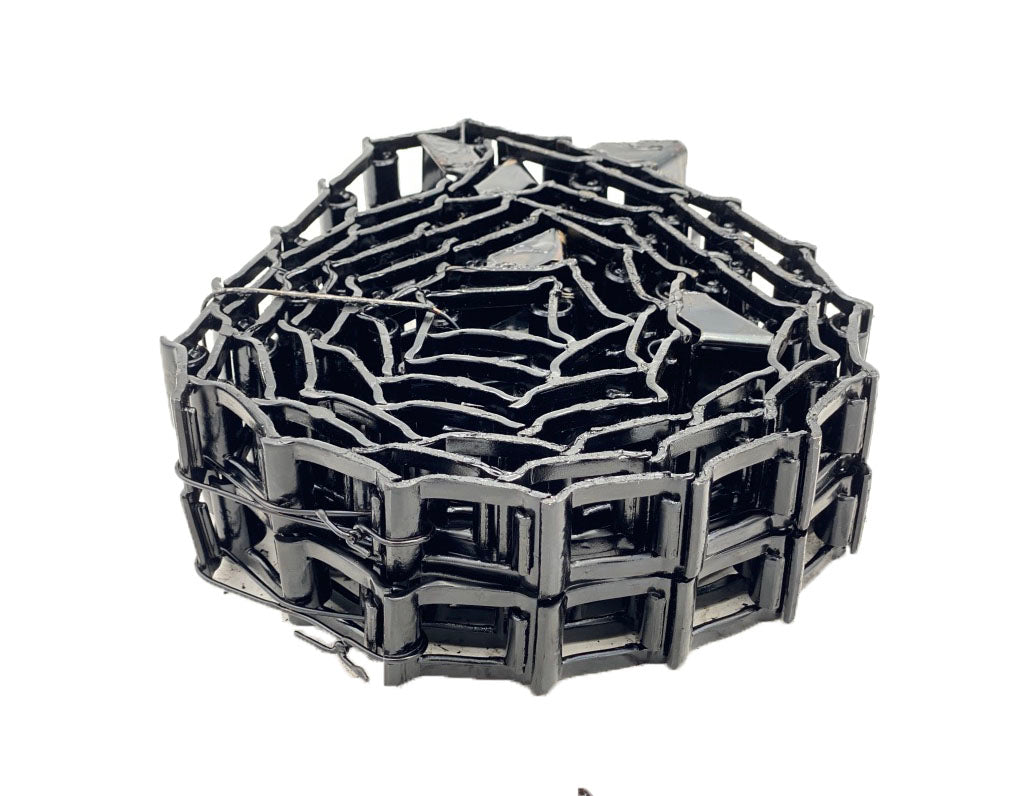

Conveyor Chain 55-75-C1-5 - USA Made 10.19' Matched Pair

USA Made Conveyor Chain - Complete Matched Pair Ready to Install

Premium USA-manufactured conveyor chain assembly featuring 55 steel detachable chain with 5 C1 slat attachments per strand. This complete 10.19' matched pair (two strands) is ready to install on your conveyor system, saving you time and ensuring proper spacing, even elevation, and balanced load carrying.

Product Code Breakdown:

• 55: Size 55 steel detachable chain
• 75: Total of 75 links per strand
• C1: Type of slat attachment (flat surface for welding or fastening)
• 5: Five C1 attachments per strand

Complete Assembly Specifications:

• SKU: T1709
• Chain Size: 55 Steel Detachable
• Configuration: Matched pair (2 strands)
• Length Per Strand: 10.19' (10 feet 2.3 inches)
• Total Links Per Strand: 75 links
• Number of C1 Attachments Per Strand: 5 attachments
• Attachment Spacing: 24.45" (every 15th link)
• Attachment Type: C1 (flat surface for slat mounting)
• Material: Heat-treated cold rolled steel
• Weight Per Strand: 7.6 lbs (15.2 lbs total)
• Average Ultimate Strength: 2,800 lbs per strand
• Made in USA
• Matched and tagged for even elevation and load carrying
• Ready to install - no assembly required

Chain Dimensions:

• Pitch (P): 1.630"
• Dimension (M): 1.281"
• Dimension (E): 0.813"
• Dimension (D): 0.796"
• Dimension (T): 0.125"
• Tolerance on Thickness: +/- 0.006"

C1 Attachment Dimensions:

• Dimension (A): 1.250"
• Dimension (C): 1.188"
• Dimension (F): 0.438"
• Dimension (H): 1.750"
• Dimension (N): 0.266"
• Dimension (T): 0.150"

Key Features:

• USA manufactured for superior quality and consistency
• Complete pre-assembled matched pair with attachments installed
• Matched and tagged strands ensure even elevation and balanced load carrying
• C1 attachments properly spaced every 24.45" for optimal performance
• Special cold rolled steel heat-treated for maximum strength and durability
• Ready to install - saves installation time
• Exact replacement for worn or damaged conveyor chains
• 2,800 lbs average ultimate strength per strand for reliable performance

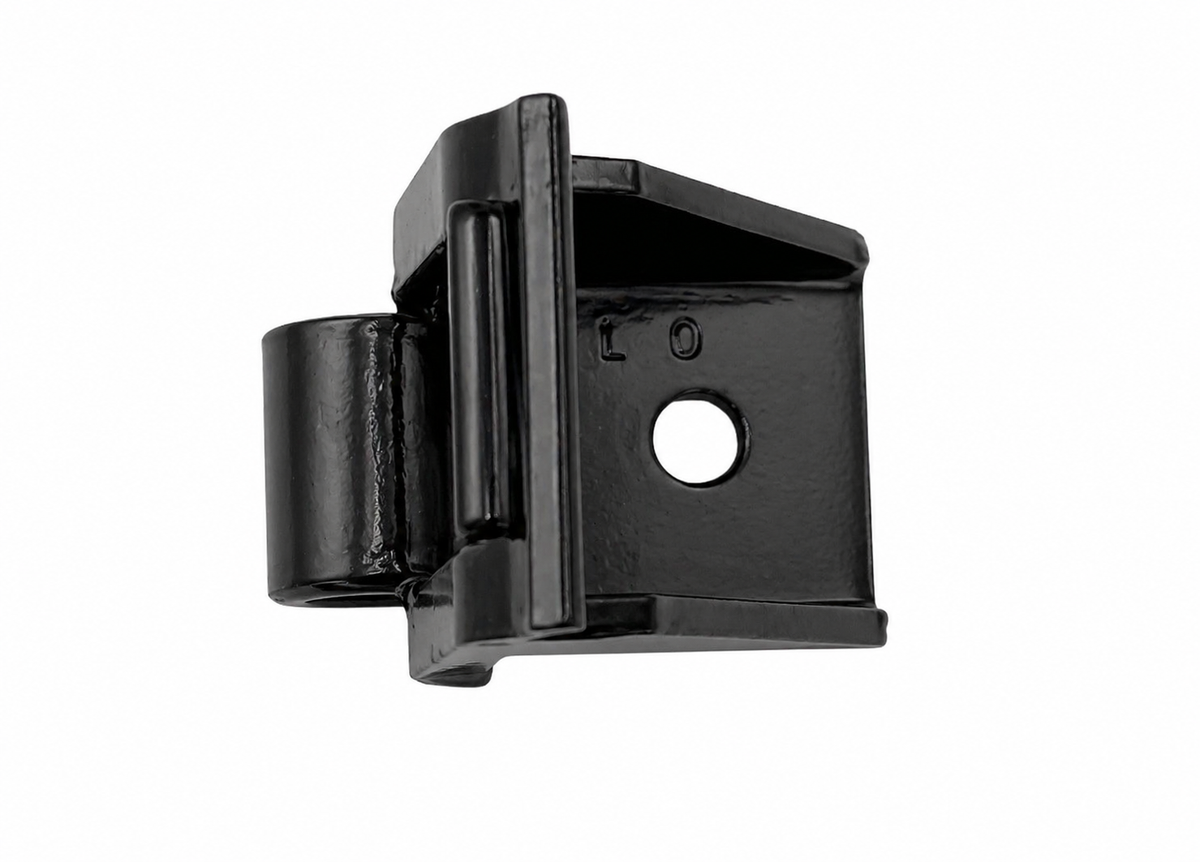

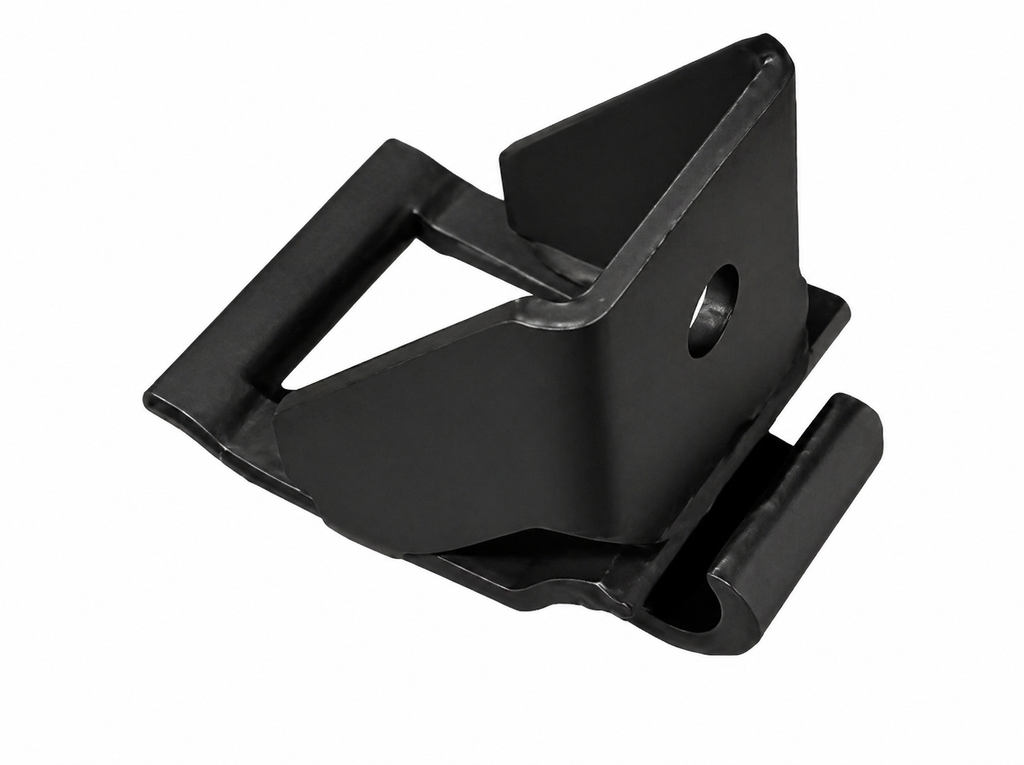

What is a C1 Attachment?

C1 attachments are specialized flat-surface links designed for welding or fastening slats, paddles, or flights onto conveyor chains. The moderate flat surface provides a secure mounting point for attaching material-moving components, making them ideal for bale elevators, grain conveyors, and other agricultural material handling systems.

Why Matched Pairs Matter

This conveyor chain is supplied as a matched pair - two strands that are carefully matched and tagged together to ensure even elevation and balanced load carrying. When both strands are identical in length and attachment spacing, your conveyor operates smoothly without binding, uneven wear, or load imbalance. This matched-pair configuration is essential for reliable conveyor performance.

Applications:

• Bale elevators and hay conveyors
• Grain handling and conveying systems
• Agricultural material handling equipment
• Barn loft bale handling systems
• Custom conveyor systems requiring slat attachments
• Replacement chain for existing conveyor systems

Why Choose Pre-Assembled Conveyor Chain?

Pre-assembled conveyor chains save you significant time and ensure proper attachment spacing and strand matching. Instead of assembling individual chain links and installing attachments one by one, this complete matched pair arrives ready to install. The C1 attachments are factory-installed at the correct 24.45" intervals (every 15th link), and both strands are matched for even operation.

Superior Construction

What separates this chain from others is that it's manufactured using special cold rolled steel that has been heat-treated for maximum strength and durability. This premium construction ensures long-lasting performance season after season, even under the demanding conditions of continuous material handling.

Installation

This complete matched pair installs just like replacing any conveyor chain. Remove the old chains, install the new pre-assembled matched pair with the C1 attachments properly positioned, attach your slats or paddles to the C1 attachment surfaces (by welding or fastening), and adjust tension according to your conveyor specifications. The detachable chain design allows for easy installation without special tools.

Slat Mounting

The C1 attachments provide a flat surface designed for welding or mechanically fastening slats, paddles, or flights. This versatile design allows you to customize your conveyor for your specific material handling needs.

Expert Help from the Midwest

Based in the heart of American agriculture, we bring over 17 years of hands-on experience specializing in agricultural chain systems and conveyor equipment. Need help verifying this is the right chain for your conveyor or have questions about installation? Call us at 815-973-2648 or 800-648-5429. We're available 24/7 to help you find the right solution.

Complete pre-assembled matched pair conveyor chain - ready to install. USA made quality for reliable performance season after season.
