BALE ELEVATOR CHAIN 62-120-HB4-8 16.54'

SKU: T2251

• BALE ELEVATOR CHAINS ALREADY MADE UP
• 62-120-HB4-8
• LENGTH- 16.54'
• ATTACHMENT EVERY 24.81”
• USA MADE
• THESE CHAINS ARE READY TO GO!

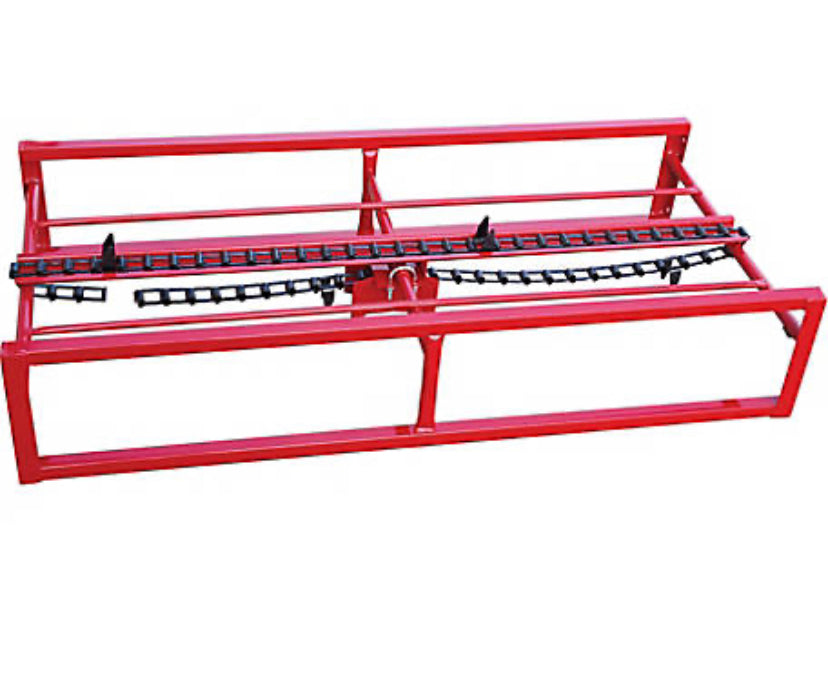

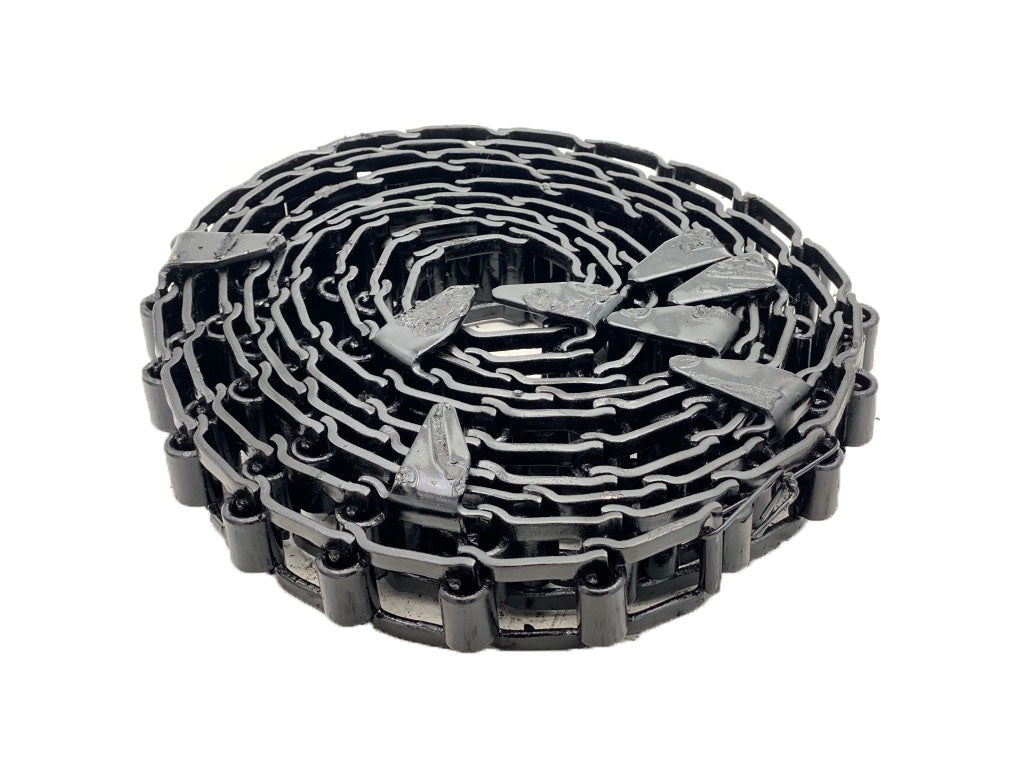

Our bale elevator chain is manufactured using a high-strength #62 steel detachable chain that has an HB4 attachment every 24.81" (15th link) and is 16.54ft in length. What separates this chain from others is that it is manufactured using a special cold rolled steel that has been heat-treated for maximum strength and durability. The HB4 attachments on this chain is designed with two dull points which catches the hay bale and proceeds to take it up the elevator.  These chains are USA MADE ready to go.  Contact us at 800-648-5429.  With are open 24/7 for you.

CHAIN DIMENSIONS

• Pitch (P): 1.654"
• Dimension (M): 1.563"
• Dimension (E): 1.002"
• Dimension (D): 0.984"
• Dimension (T): 0.148"
• Average Ultimate Strength: 4,200 LBS
• Chain Assembly Weight: 15.5 LBS
• Overall Length: 16.54FT
• Attachment Spacing: 24.81"
• Amount Of Attachments: 8
• Tolerance on Thickness: +/- 0.007"

• Dimension (E): 0.875"
• Dimension (F): 1.953"
• Dimension (H): 2.188"
• Dimension (T): 0.148"
