Bale Elevator Chain 62-75-HB4-5 - USA Made 10.34' Complete Assembly

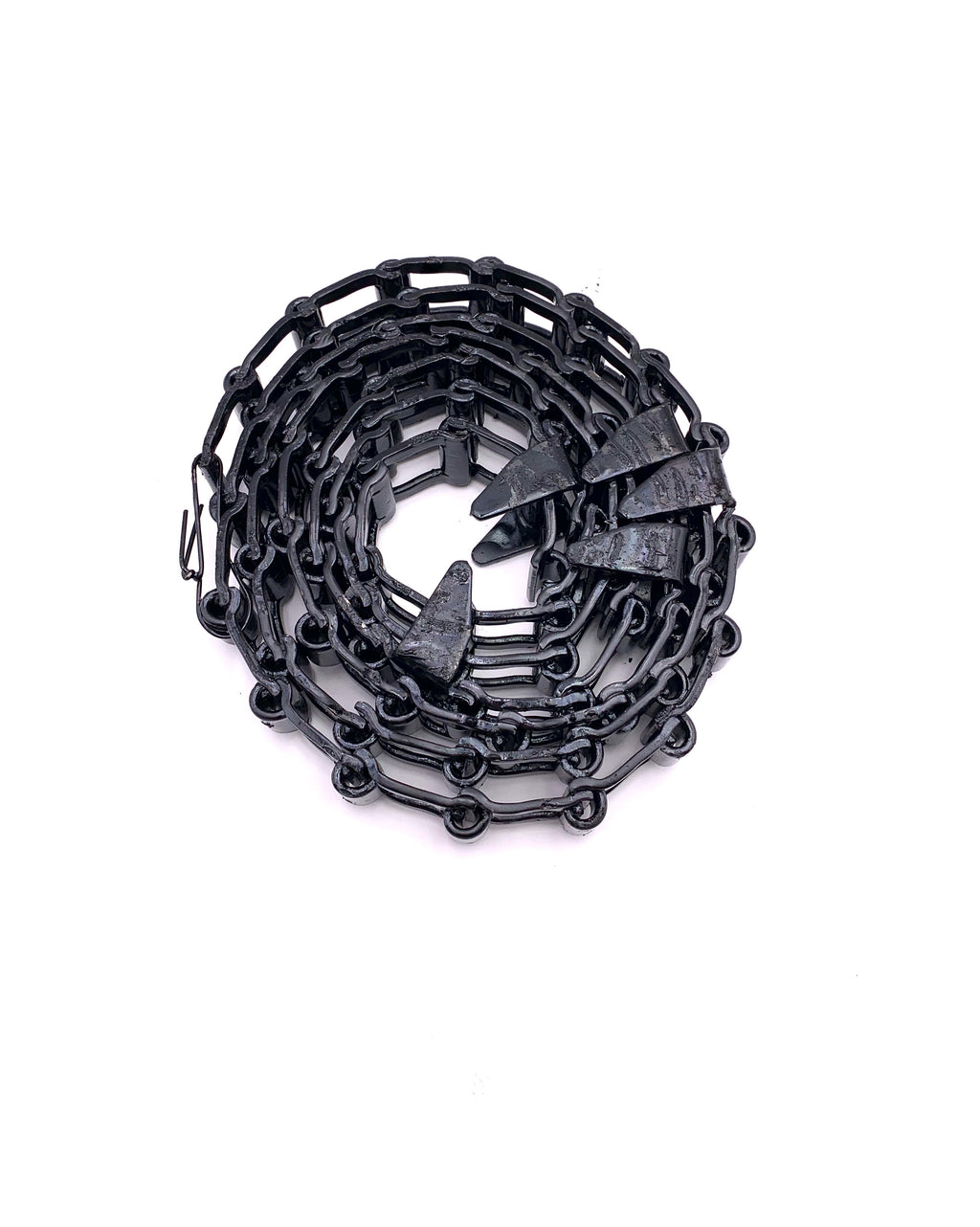

USA Made Bale Elevator Chain - Complete Assembly Ready to Install

Premium USA-manufactured bale elevator chain assembly featuring 62 steel detachable chain with 5 HB4 hay bale attachments. This complete 10.34' (10 feet 4 inches) assembly is ready to install on your bale elevator, saving you time and ensuring proper spacing and configuration.

Product Code Breakdown:

• 62: Size 62 steel detachable chain
• 75: Total of 75 links in the complete assembly
• HB4: Type of hay bale attachment (2-prong design)
• 5: Five HB4 attachments evenly spaced throughout the chain

Complete Assembly Specifications:

• Chain Size: 62 Steel Detachable
• Total Length: 10.34' (10 feet 4 inches)
• Total Links: 75 links
• Number of HB4 Attachments: 5 attachments
• Attachment Spacing: 24.81" (every 15th link)
• Attachment Type: HB4 (2-prong hay bale attachment)
• Material: Cold-rolled, heat-treated steel detachable chain
• Chain Assembly Weight: 9.9 lbs
• Average Ultimate Strength: 4,200 lbs
• Made in USA
• Ready to install - no assembly required

Key Features:

• USA manufactured for superior quality and consistency
• Complete pre-assembled chain with attachments installed
• HB4 attachments properly spaced for optimal bale handling
• Cold-rolled, heat-treated steel for maximum strength and durability
• Ready to install - saves installation time
• Exact replacement for worn or damaged bale elevator chains
• Compatible with standard bale elevator systems
• 4,200 lbs average ultimate strength for reliable performance

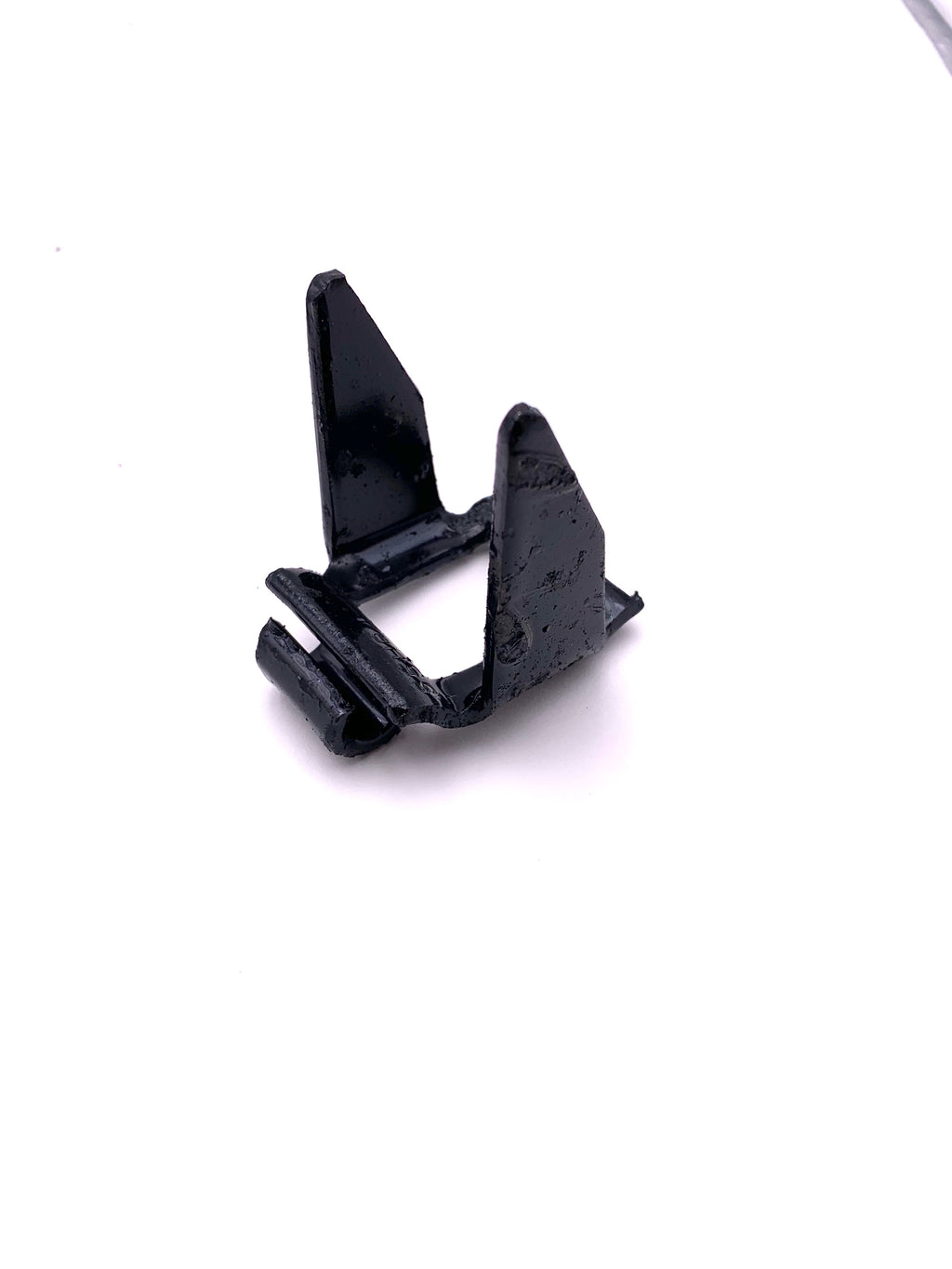

What is an HB4 Attachment?

HB4 attachments are specialized 2-prong hay bale grippers that attach to steel detachable chain for bale elevator applications. The two dull points grip and lift hay bales as the chain moves through the elevator system, providing secure bale handling from ground level to the loft or storage area.

Technical Chain Dimensions:

• Pitch (P): 1.654"
• Dimension (M): 1.563"
• Dimension (E): 1.002"
• Dimension (D): 0.984"
• Dimension (T): 0.148" (Tolerance: +/- 0.007")

HB4 Attachment Dimensions:

• Dimension (E): 0.875"
• Dimension (F): 1.953"
• Dimension (H): 2.188"
• Dimension (T): 0.148"

Applications:

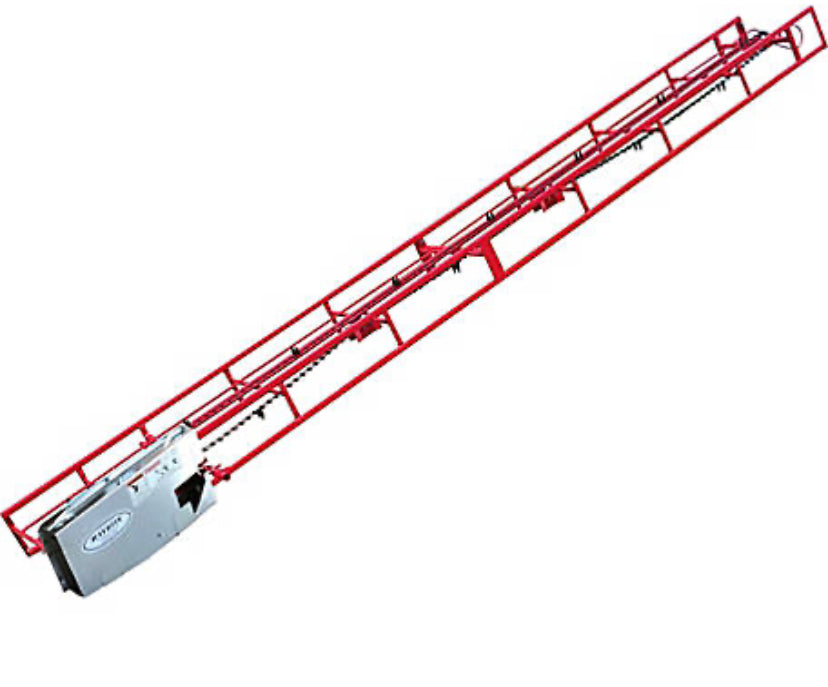

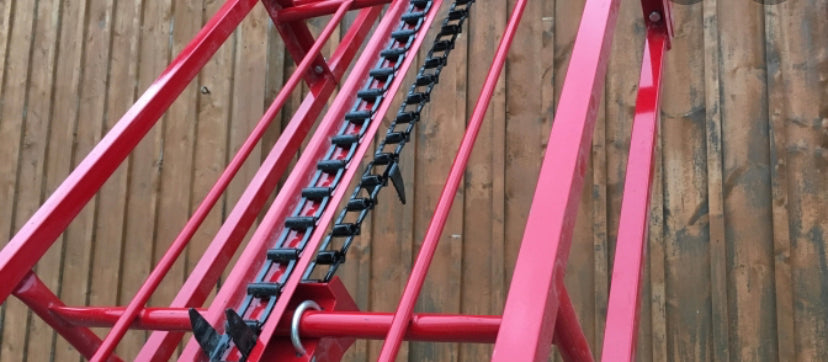

• Bale elevators and hay conveyors
• Barn loft bale handling systems
• Hay storage and stacking equipment
• Agricultural bale moving systems
• Replacement chain for existing bale elevators

Why Choose Pre-Assembled Bale Elevator Chain?

Pre-assembled bale elevator chains save you significant time and ensure proper attachment spacing. Instead of assembling individual chain links and installing attachments one by one, this complete assembly arrives ready to install. The HB4 attachments are factory-installed at the correct intervals (every 24.81") for optimal bale handling performance.

Installation

This complete chain assembly installs just like replacing any bale elevator chain. Remove the old chain, install the new pre-assembled chain with the HB4 attachments properly positioned, and adjust tension according to your elevator specifications. The detachable chain design allows for easy installation without special tools.

Replacement for Worn Chains

If your bale elevator chain is worn, stretched, or has damaged attachments, this complete assembly provides an exact replacement. The 10.34' length with 75 links and 5 HB4 attachments spaced every 24.81" is a common configuration for many bale elevator systems.

Expert Help from the Midwest

Based in the heart of American agriculture, we bring over 17 years of hands-on experience specializing in agricultural chain systems and bale elevator equipment. Need help verifying this is the right chain for your bale elevator or have questions about installation? Call us at 815-973-2648 or 800-648-5429. We're here to help you find the right solution.

Part Details:

• SKU: T1947
• Country of Origin: USA

Complete pre-assembled bale elevator chain - ready to install. USA made quality for reliable performance season after season.
