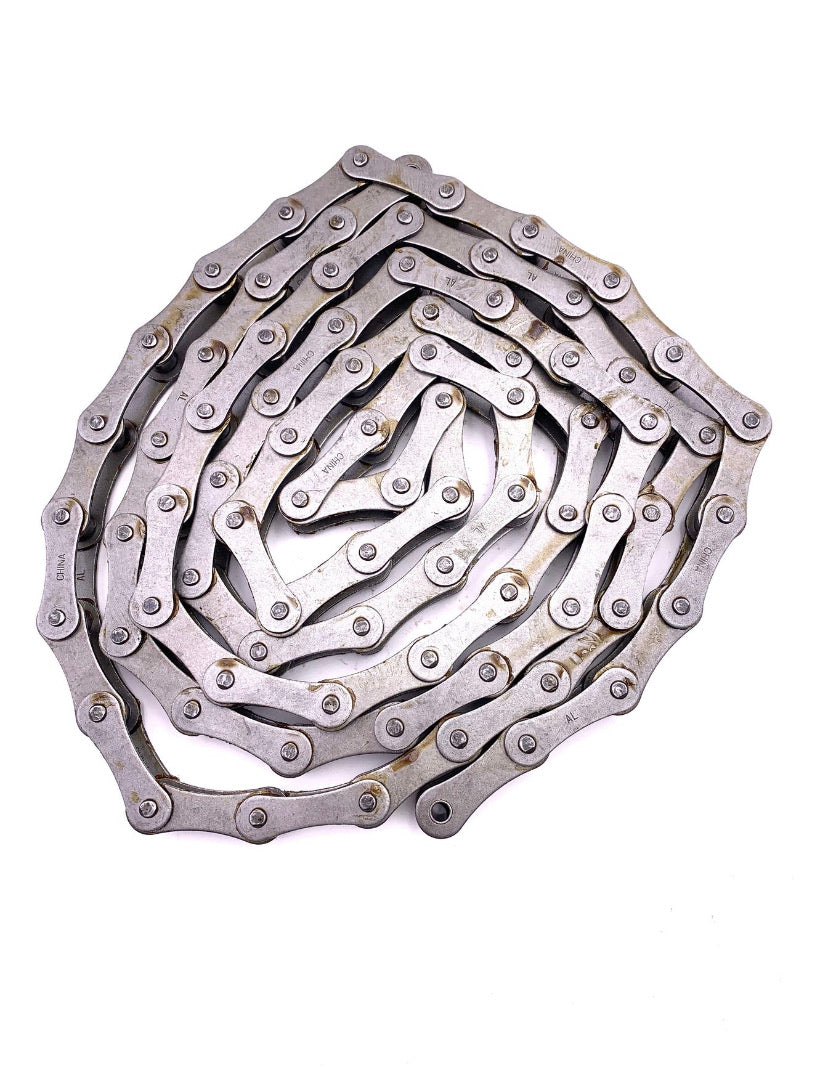

A2080 Double Pitch Roller Chain - 10' Coil with Connector Link | ANSI Agricultural Chain

SKU: A2080

Premium A2080 double pitch roller chain engineered for demanding agricultural and industrial applications. This ANSI-compliant chain features figure-8 shaped sidebars for superior drive performance, making it ideal for manure spreaders, conveyors, and heavy-duty farm equipment.

Product Specifications:

• Chain Size: A2080 Double Pitch Roller Chain
• Length: 10' Coil (includes one connecting link)
• Pitch (P): 2.000"
• Roller Width (W): 0.625"
• Roller Diameter (R): 0.625"
• Plate Height (H): 0.935"
• Plate Thickness (T): 0.125"
• Pin Diameter (D): 0.312"
• Chain Width (F): 1.272"
• Connecting Link Width (G): 1.386"
• Weight: 1.22 LBS/FT

About Double Pitch Roller Chain:

Double pitch roller chains are dimensionally similar to standard ANSI roller chains but have double the pitch size for extended reach applications. The A series features figure-8 shaped sidebars and is engineered for drive applications, while the C series has straight sidebars for conveyor use. A2080 agricultural roller chain is widely used throughout the agriculture industry and many other industrial applications for its durability and reliability.

Each 10ft coil includes one connecting link. Custom lengths available upon request.
