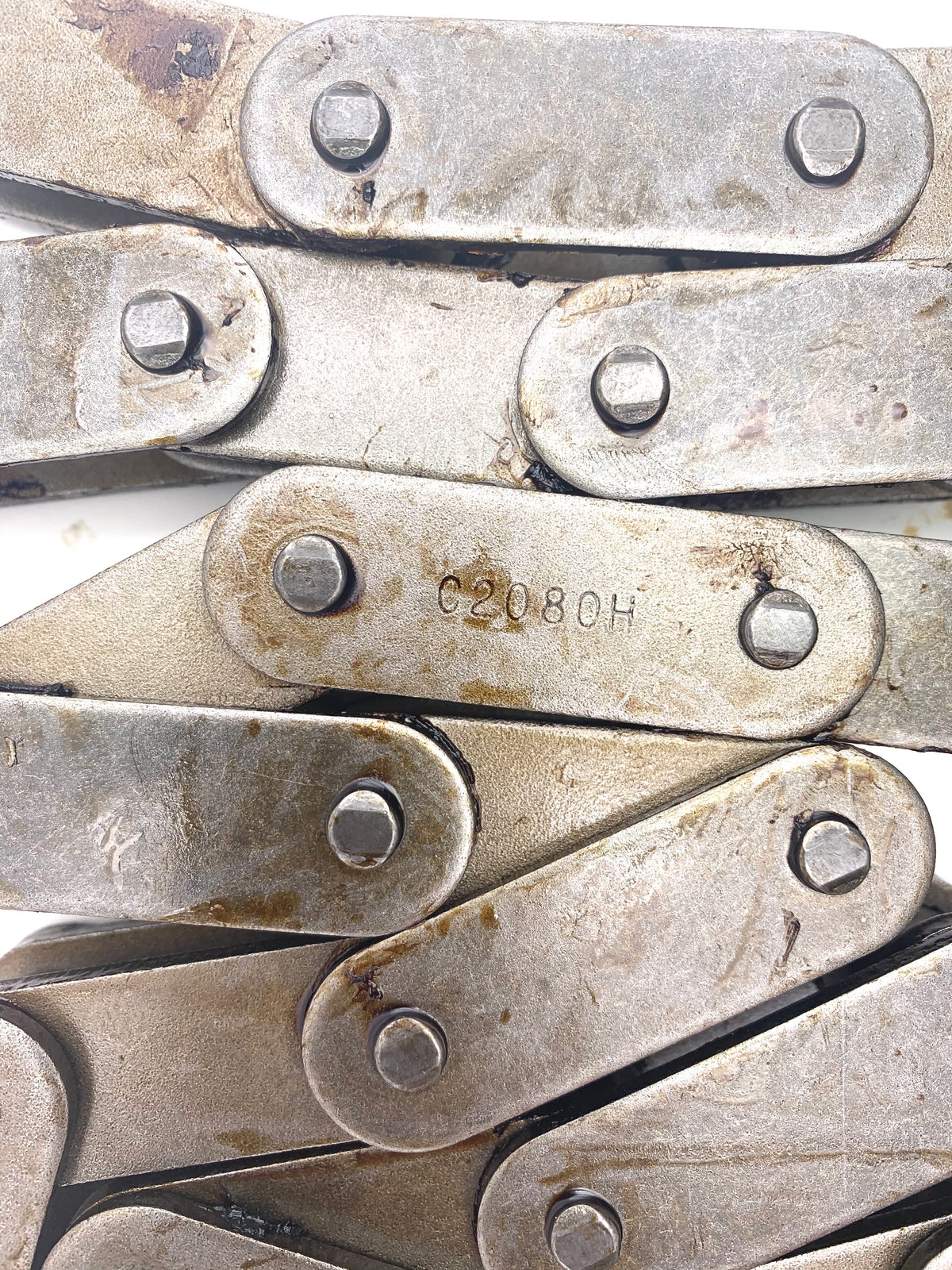

C2080H ROLLER CHAIN

SKU: C2080H

• Chain Size: C2080H Double Pitch Roller Chain

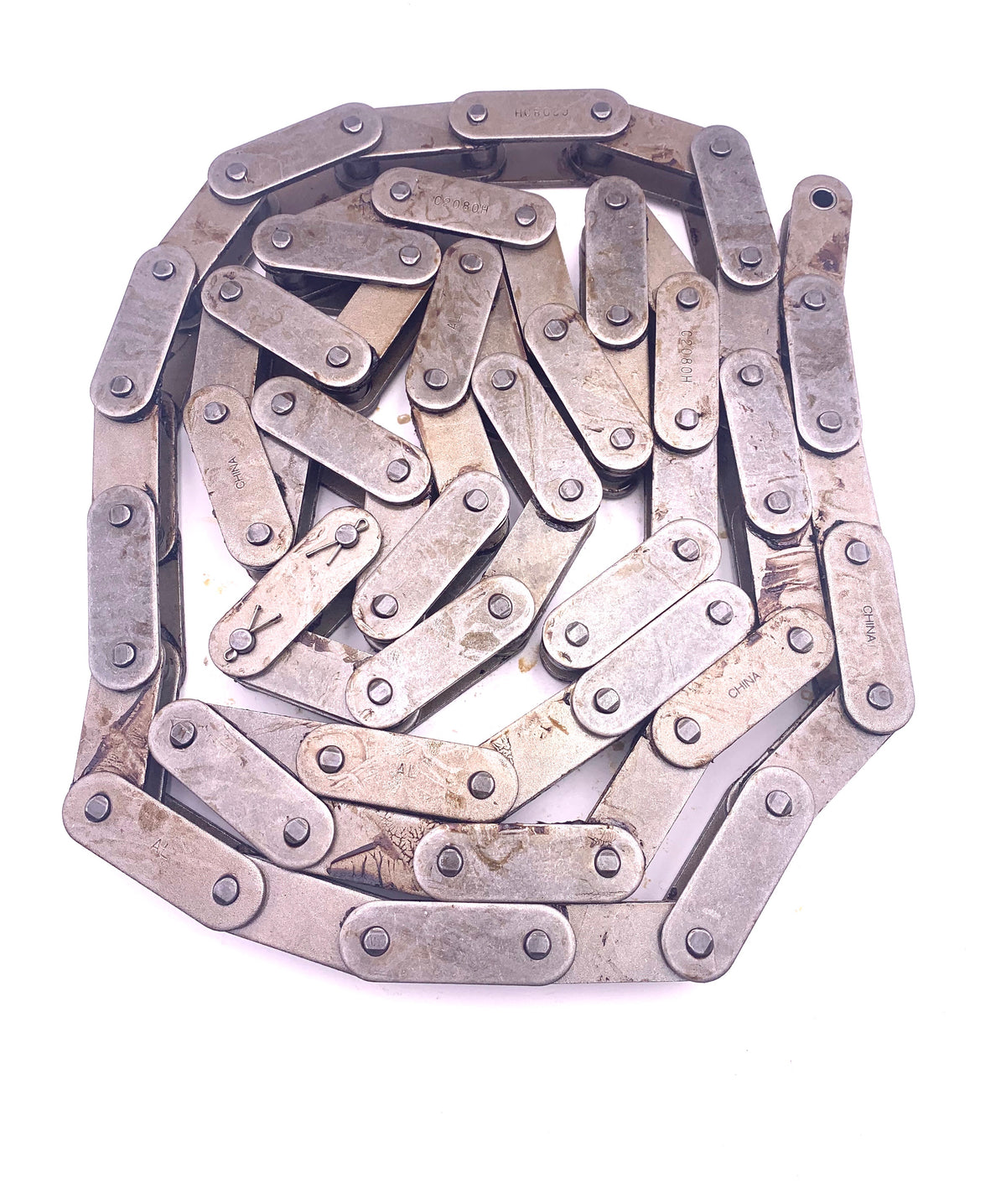

• 10’ Coil
• Pitch (P): 2.000"
• Roller Width (W): 0.625"
• Roller Diameter (R): 0.625"
• Plate Height (H): 0.935"
• Plate Thickness (T): 0.156"
• Pin Diameter (D): 0.312"
• Overall Width (F): 1.398"
• Tensile Strength: 17,300lbs
• Weight: 1.67 lbs/ft

C2080H Roller Chain Dimensions

C2080H roller chain is a double pitch heavy duty series chain that is specifically manufactured for moderate to heavy duty conveying applications. Our C2080H double pitch chain is manufactured to ANSI B29.1 specifications and is extremely durable and high strength. Each component that goes into this roller chain has been heat treated, shot, peened, and pre-stretched at the factory to reduce elongation. It features a solid roller design that allows for it to withstand higher shock loads as well as operate much longer than those that do not have the solid roller design. This chain is typically supplied as 10' boxes but we also stock 50' reels and 100' reels for customers who need longer lengths.
