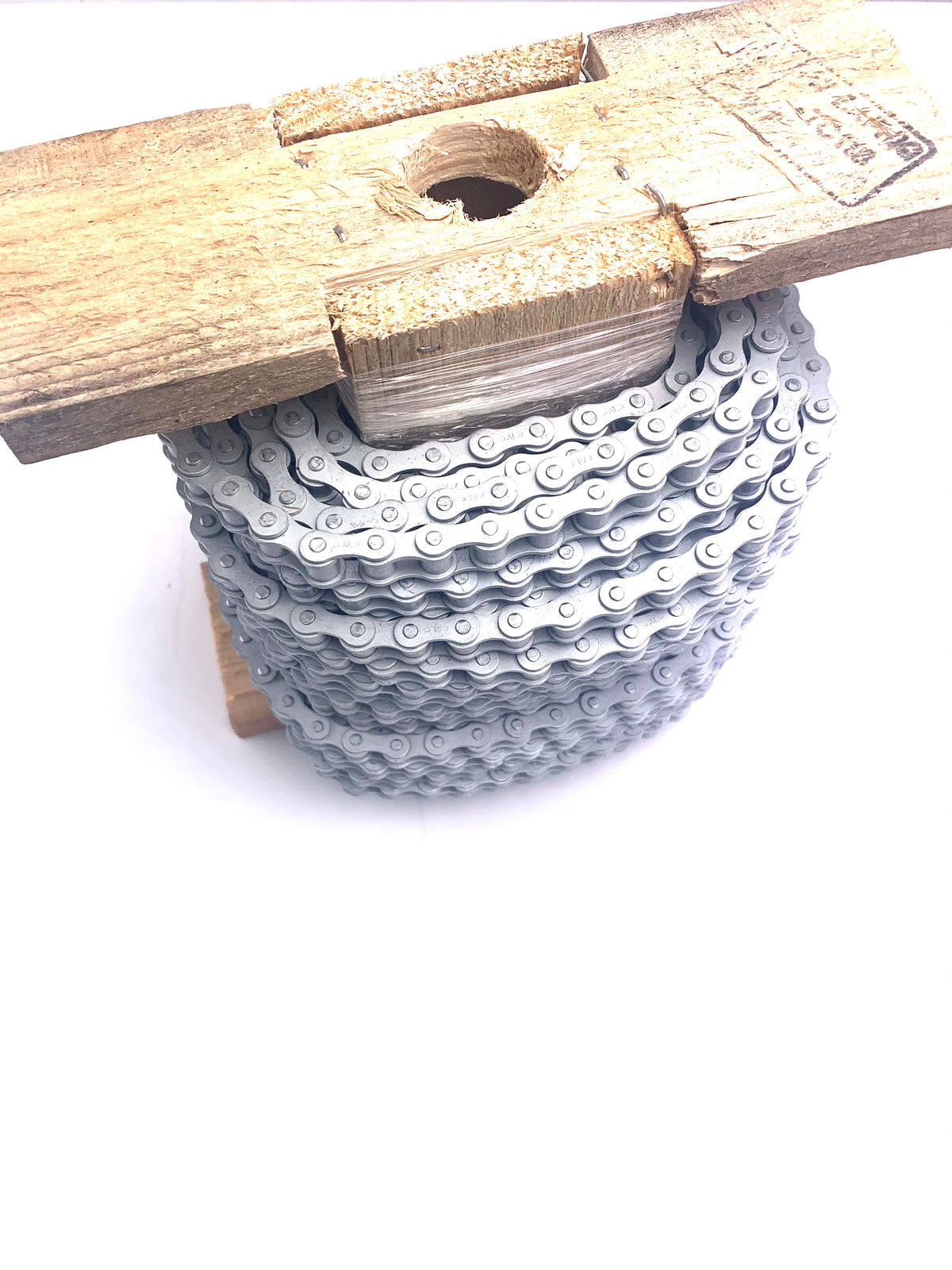

DACROMET 40 PRECISION ROLLER CHAIN-50'
SKU: 40-50-D
- 40-50’ Single Strand-Dacromet Coated
- Pitch (P) .500
- Roller Width (W) .312
- Roller Diameter (D) .312
- Link Plate Height (H) .475
- Link Plate Thickness (T) .058
- Pin Diameter (E) .156
- Avg Ultimate Strength 3,970 lbs
- Avg Weight .42 lb/ft
- No of Links per 10' Coil: 240
- One connector link provided per 10'
- Meets all ANSI Standard
40 Roller Chain Dimensions
This #40 Dacromet Coated Roller Chain is highly resistant to corrosion. This coated roller chain is more resistant to corrosion than nickel plated roller chain and is often times more cost effective. The baked on coating is applied in a way to reduce premature corrosion and failure. Each individual chain componenets has the dacromet coating applied before assembly to ensure max effectiveness of the coating. This roller chain fully meets all ANSI standards and will work on standard roller chain sprockets. #40 coated roller chain is supplied in 10’ boxes, 50’ or 100’ reels. You are provided with one connector link for every 10’ purchased. These chains are great for planters or any type of machinery that is used in the agricultural industry. They can also be used in the food industry.
SKU: 40-50-D
- 40-50’ Single Strand-Dacromet Coated
- Pitch (P) .500
- Roller Width (W) .312
- Roller Diameter (D) .312
- Link Plate Height (H) .475
- Link Plate Thickness (T) .058
- Pin Diameter (E) .156
- Avg Ultimate Strength 3,970 lbs
- Avg Weight .42 lb/ft
- No of Links per 10' Coil: 240
- One connector link provided per 10'
- Meets all ANSI Standard
40 Roller Chain Dimensions
This #40 Dacromet Coated Roller Chain is highly resistant to corrosion. This coated roller chain is more resistant to corrosion than nickel plated roller chain and is often times more cost effective. The baked on coating is applied in a way to reduce premature corrosion and failure. Each individual chain componenets has the dacromet coating applied before assembly to ensure max effectiveness of the coating. This roller chain fully meets all ANSI standards and will work on standard roller chain sprockets. #40 coated roller chain is supplied in 10’ boxes, 50’ or 100’ reels. You are provided with one connector link for every 10’ purchased. These chains are great for planters or any type of machinery that is used in the agricultural industry. They can also be used in the food industry.
