MASSEY FERGUSON CA550-51-?-7 ENDLESS OEM 106488W91

$149.70 $152.36

SKU: MF305

  • CA550-51-?-7 ENDLESS
  • Harvestec corn heads 440, 630, 636, 830, 836, 840 built 2001 & before with 9-tooth top sprocket and 11-tooth lower idler.
  • Massey Ferguson corn heads 844, 863, 864, 883, 884 with 9-tooth top sprocket and 11-tooth lower idler.
  • Replaces - Massey Ferguson No 106488W91
  • Replaces - Harvestec No 106488W91

  Chain Dimensions

  • Chain Size: CA550
  • Pitch (P): 1.630"
  • Roller Width (W): 0.797"
  • Roller Diameter (D): 0.656"
  • Overall Width Riveted (C): 1.420"
  • Overall Width Cottered: 1.563"
  • Link Plate Height (H): 0.750"
  • Link Plate Thickness (T): 0.105"
  • Pin Diameter (E): 0.281"
  • Ultimate Strength: 11,250 LBS

Gathering Lug Dimensions

  • Attachment #: CA550 C13E
  • Dimension (C): 1.266"
  • Angle (R): 15 Degrees
  • Dimension (S): 3.625"
  • Dimension (T): 0.105"

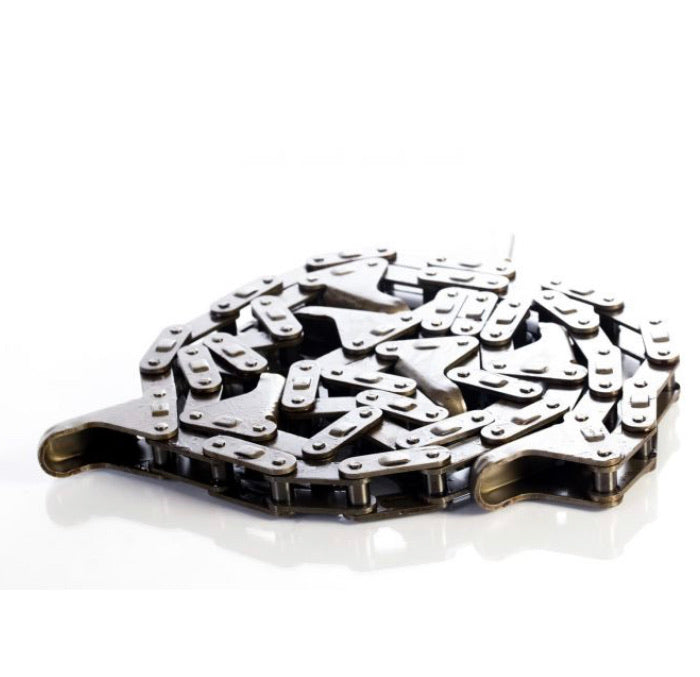

This 106488W91 Massey Ferguson corn head gathering chain assembly Fits Massey Ferguson 800 series corn head gathers which has a 9 tooth upper drive sprocket and an 11 tooth lower idler sprocket. What separates this chain assembly from others is that it uses a extreme-duty CA550 chain that is assembled using special high-strength heat-treated components and features a solid roller design for increased performance and durability. It features seven (7) C13E attachments/ gathering lugs that are spaced every 11.876" and is 51 links long, which is 83.13" total.

Description

SKU: MF305

  • CA550-51-?-7 ENDLESS
  • Harvestec corn heads 440, 630, 636, 830, 836, 840 built 2001 & before with 9-tooth top sprocket and 11-tooth lower idler.
  • Massey Ferguson corn heads 844, 863, 864, 883, 884 with 9-tooth top sprocket and 11-tooth lower idler.
  • Replaces - Massey Ferguson No 106488W91
  • Replaces - Harvestec No 106488W91

  Chain Dimensions

  • Chain Size: CA550
  • Pitch (P): 1.630"
  • Roller Width (W): 0.797"
  • Roller Diameter (D): 0.656"
  • Overall Width Riveted (C): 1.420"
  • Overall Width Cottered: 1.563"
  • Link Plate Height (H): 0.750"
  • Link Plate Thickness (T): 0.105"
  • Pin Diameter (E): 0.281"
  • Ultimate Strength: 11,250 LBS

Gathering Lug Dimensions

  • Attachment #: CA550 C13E
  • Dimension (C): 1.266"
  • Angle (R): 15 Degrees
  • Dimension (S): 3.625"
  • Dimension (T): 0.105"

This 106488W91 Massey Ferguson corn head gathering chain assembly Fits Massey Ferguson 800 series corn head gathers which has a 9 tooth upper drive sprocket and an 11 tooth lower idler sprocket. What separates this chain assembly from others is that it uses a extreme-duty CA550 chain that is assembled using special high-strength heat-treated components and features a solid roller design for increased performance and durability. It features seven (7) C13E attachments/ gathering lugs that are spaced every 11.876" and is 51 links long, which is 83.13" total.

The details
Type:

agriculture

Vendor:

Farmchains.com

SKU:

MF305

Weight:

10.0 lb
