New Holland 845 Round Baler Upper Chain - USA Made CA557

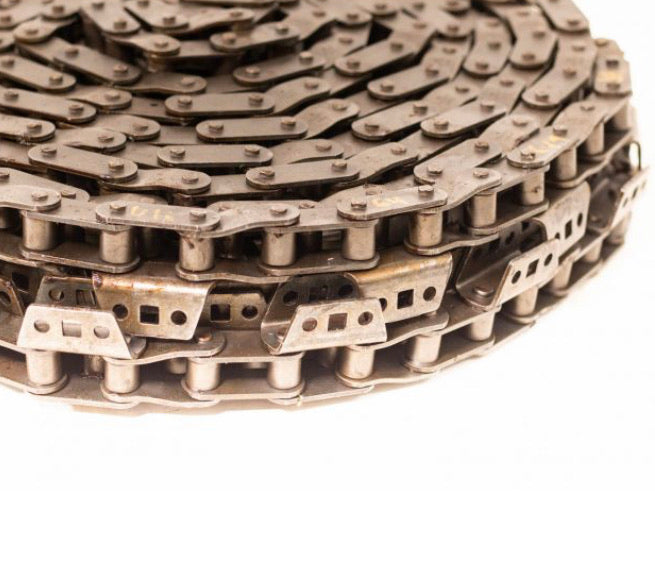

Premium USA Made Replacement Upper Chain for New Holland 845 Round Balers

Upgrade your New Holland 845 round baler with our high-strength CA557 agricultural chain assembly. Engineered for superior performance and extended durability, this direct OEM replacement keeps your baling operation running smoothly season after season.

SKU: E5020 | OEM: 404545

Key Features & Benefits:

• USA Made Quality - Heat-treated precision components for maximum strength and reliability
• Direct OEM Replacement - Fits New Holland 845 round balers
• Matched Pairs - Tagged and matched for smooth, even operation
• High Strength CA557 Chain - 16,500 LBS ultimate strength rating
• U16 Attachments - Precision-engineered for optimal bale formation

Technical Specifications:

Chain Size: CA557
Part Number: CA557-180-U16-60
OEM Number: 404545
Total Links: 180
Attachment Type: U16
Attachment Spacing: 4.89"
Number of Attachments: 60
Pitch (P): 1.630"
Roller Width (W): 0.797"
Roller Diameter (D): 0.700"
Overall Width Riveted (C): 1.469"
Overall Width Cottered: 1.594"
Link Plate Height (H): 0.906"
Link Plate Thickness (T): 0.125"
Pin Diameter (E): 0.315"
Ultimate Strength: 16,500 LBS

845 Upper Chain Dimensions

U16 Attachment Dimensions

Dimension (E): 1.187"
Dimension (J): 1.281"
Dimension (K): 1.719"
Dimension (L): 0.594"
Dimension (M): 2.625"
Dimension (N1): 0.328"
Dimension (N2): 0.391"
Dimension (T): 0.120"

Why Choose Farmchains.com?

This premium replacement chain is manufactured using USA-made high-strength heat-treated components designed specifically for demanding agricultural applications. Each chain assembly is carefully matched and tagged in pairs to ensure smooth, balanced operation and prevent premature wear on your baler.

Compatible with: New Holland 845 round balers
