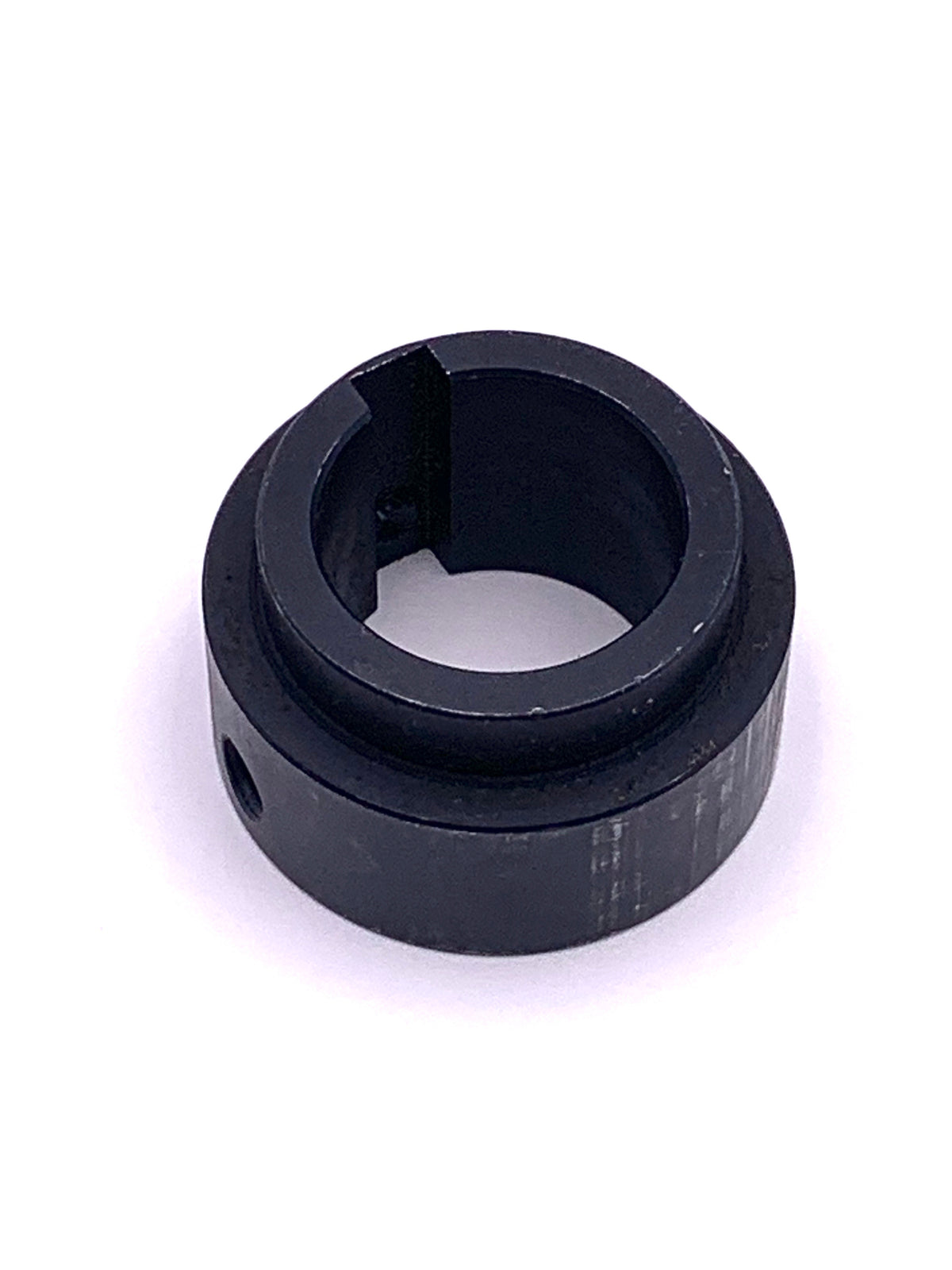

X Weld On Hub With 1-1/2” Bore

$11.89 ~~$12.05~~

SKU: 000300245

G&G Weld-a-Hub
X Style
X-Match up with X Sprocket
Keyway and 2 set screws
Hub Series:X Series
Bore:1-1/2''
Outside Diameter (de):2.500''
Length Thru Bore (LTB):1.437"
Keyway Size:3/8'' X 3/16''
Material:1020CD
No. Of Setscrews:2
Type Of Finish:Black Oxide
Step Diameter (dm):2.000''
Step Width (A1):0.4375''

1-1/2" Finished Bore Hub Dimensions

1-1/2” finished bore hubs are bored-to-size and include a keyway & 2 setscrews. All X series hubs are manufactured from 1020CD carbon steel and finished with black oxide for corrosion resistance. Our 1-1/2” weld on hubs is compatible any of our X series weld on sprockets.

We offer an extensive line of X-Series weld on hubs ranging from stock bore, and standard bore sizes. These X weld on hubs are manufactured to tight, quality-driven specifications to make sure you're always receiving a product that meets specifications and is consistent. In addition to the hubs, we also offer a full line of high-quality sprockets that are manufactured to accept the X-series hubs. For more information or to place an order over the phone please contact us 800-648-5429 and we will be happy to assist you.
