CONVEYOR CHAINS 55-72-C1-9 PAIR 9.78'

$163.77 $189.63

SKU: T2285

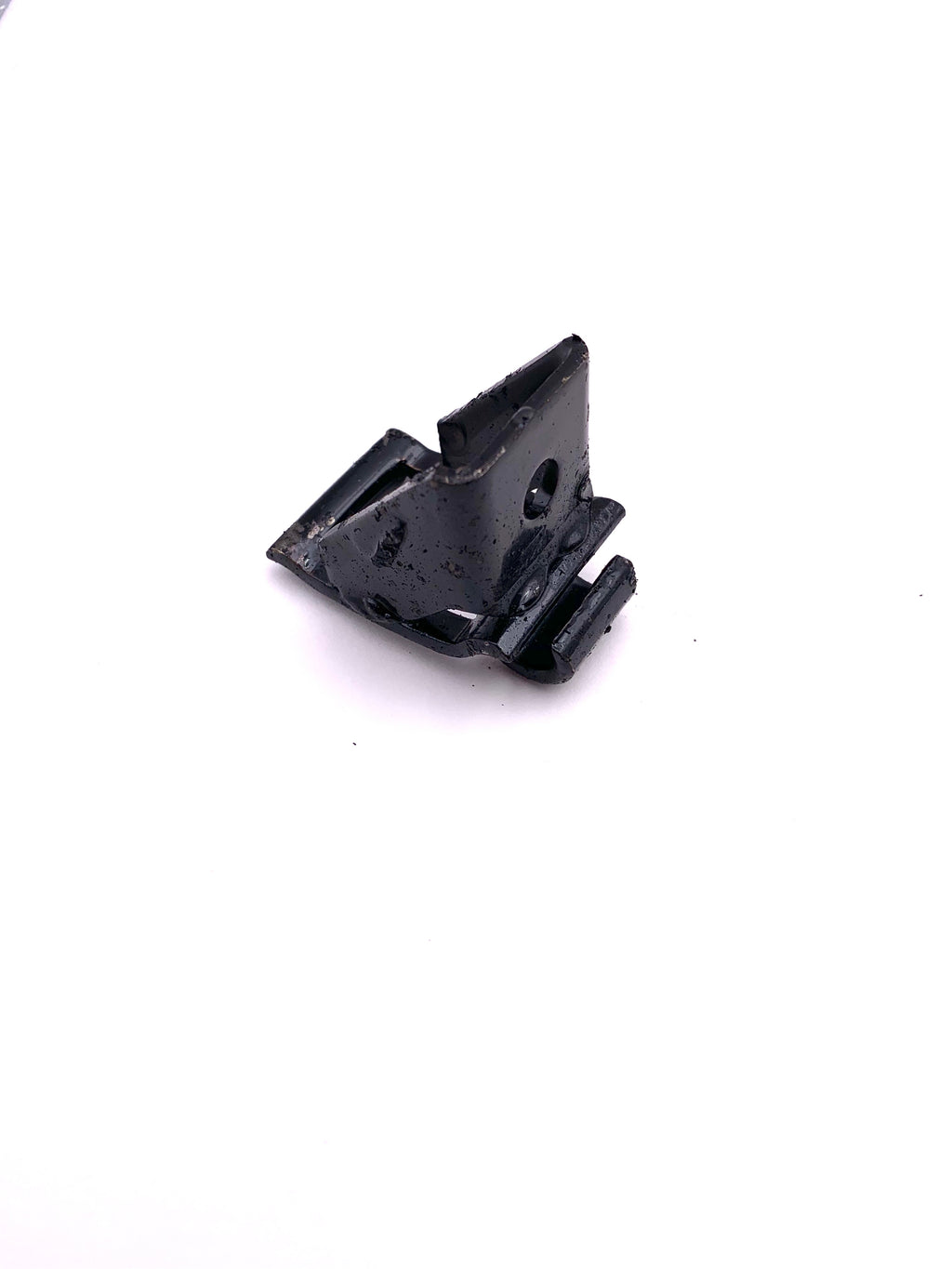

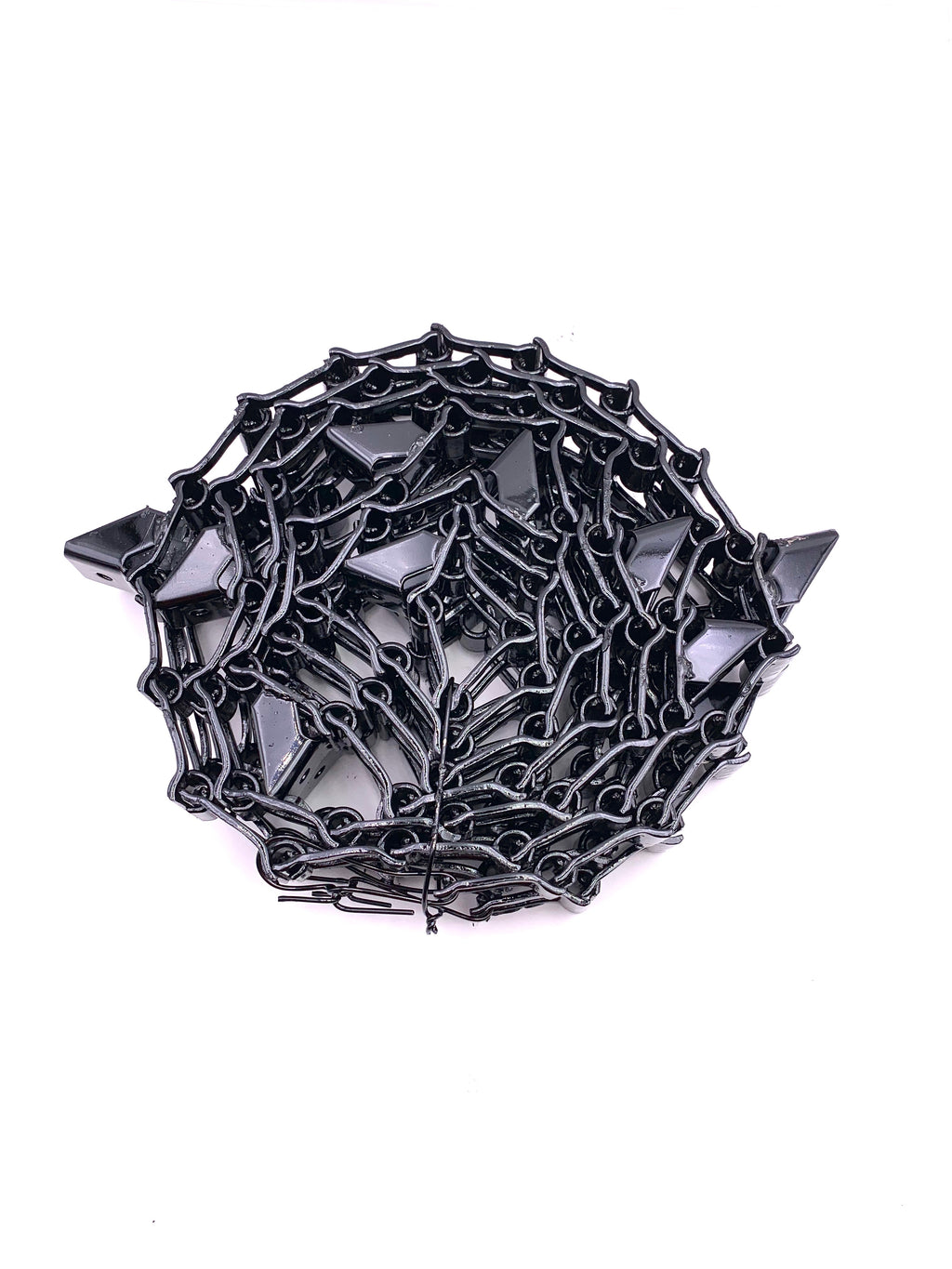

Our bale elevator chain is manufactured using a high-strength #55 steel detachable chain that has an C1 attachment every 13.04" (8th link) and is supplied as a 9.78ft pair (two strands of chain) that is matched and tagged for even elevation and load carrying. What separates this chain from others is that it is manufactured using a special cold rolled steel that has been heat-treated for maximum strength and durability. The C1 attachments on this chain is designed with a moderate surface for welding or fastening slats onto them that will be used to elevate the hay bale.  These chains are USA MADE ready to go.  Contact us today at 800-648-5429.  We are open 24/7

CHAIN DIMENSIONS


  • Pitch (P): 1.630"
  • Dimension (M): 1.281"
  • Dimension (E): 0.813"
  • Dimension (D): 0.796"
  • Dimension (T): 0.125"
  • Average Ultimate Strength: 2,800 LBS
  • Weight Per Strand: 6.9 LBS
  • Overall Assembly Length: 9.78FT
  • Amount Of Attachments: 9
  • Attachment Spacing: 13.04" (Every 8th)
  • Tolerance on Thickness: +/- 0.006"


  • Dimension (A): 1.250"
  • Dimension (C): 1.188"
  • Dimension (F): 0.438"
  • Dimension (H): 1.750"
  • Dimension (N): 0.266"
  • Dimension (T): 0.150"



Description

SKU: T2285

Our bale elevator chain is manufactured using a high-strength #55 steel detachable chain that has an C1 attachment every 13.04" (8th link) and is supplied as a 9.78ft pair (two strands of chain) that is matched and tagged for even elevation and load carrying. What separates this chain from others is that it is manufactured using a special cold rolled steel that has been heat-treated for maximum strength and durability. The C1 attachments on this chain is designed with a moderate surface for welding or fastening slats onto them that will be used to elevate the hay bale.  These chains are USA MADE ready to go.  Contact us today at 800-648-5429.  We are open 24/7

CHAIN DIMENSIONS


  • Pitch (P): 1.630"
  • Dimension (M): 1.281"
  • Dimension (E): 0.813"
  • Dimension (D): 0.796"
  • Dimension (T): 0.125"
  • Average Ultimate Strength: 2,800 LBS
  • Weight Per Strand: 6.9 LBS
  • Overall Assembly Length: 9.78FT
  • Amount Of Attachments: 9
  • Attachment Spacing: 13.04" (Every 8th)
  • Tolerance on Thickness: +/- 0.006"


  • Dimension (A): 1.250"
  • Dimension (C): 1.188"
  • Dimension (F): 0.438"
  • Dimension (H): 1.750"
  • Dimension (N): 0.266"
  • Dimension (T): 0.150"



The details
Type:

agriculture

Vendor:

Farmchains.com

SKU:

T2285

Weight:

13.2 lb
