Conveyor Chain 62-72-C1-9 - USA Made 9.93' Matched Pair

USA Made Conveyor Chain - Matched Pair Ready to Install

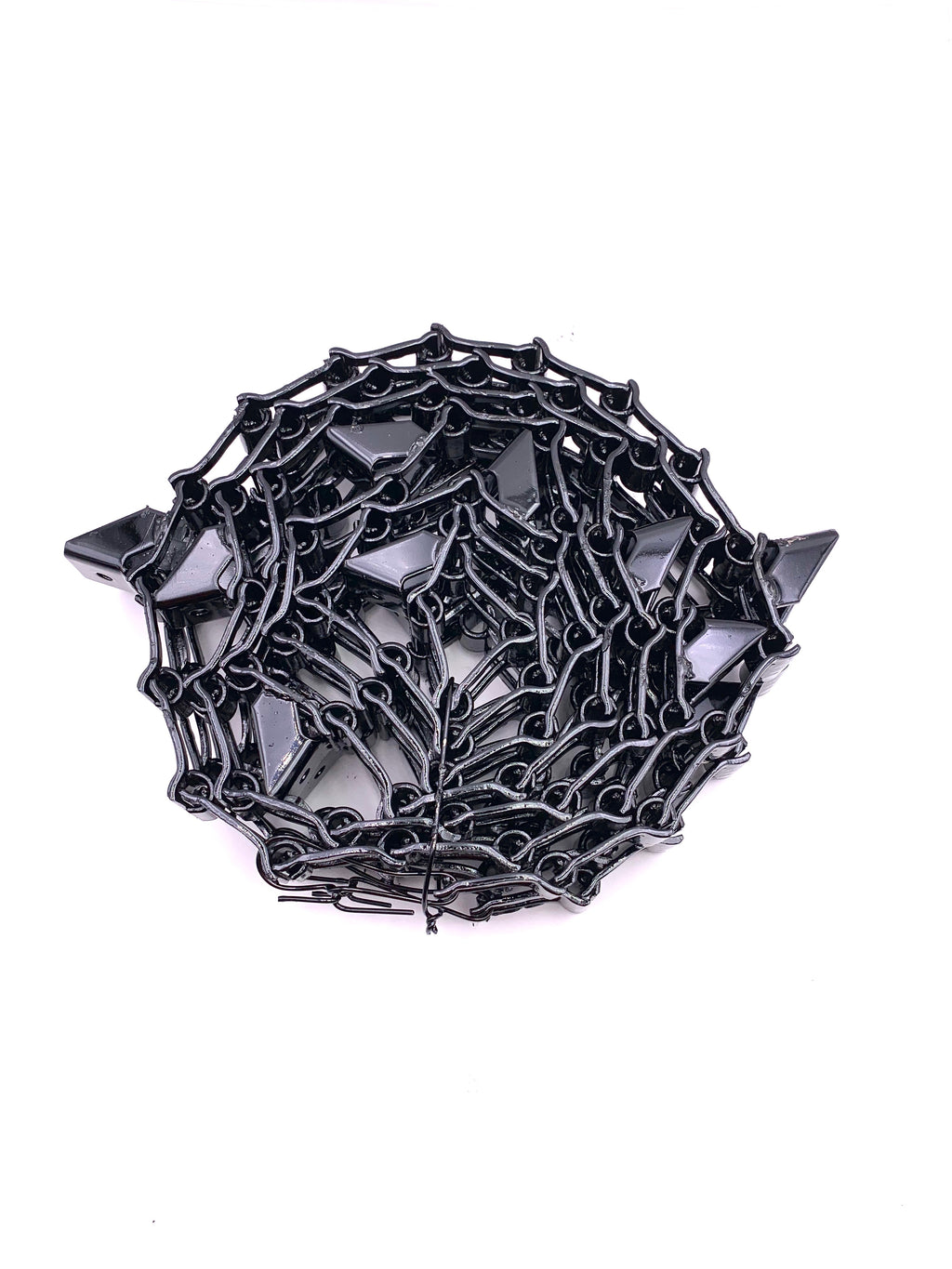

Premium USA-manufactured conveyor chain assembly featuring 62 steel detachable chain with 9 C1 attachments per strand. This matched pair (two strands of chain) is supplied at 9.93' length, tagged and matched for even elevation and load carrying on your bale elevator or conveyor system.

Product Code Breakdown:

• 62: Size 62 steel detachable chain
• 72: Total of 72 links per strand
• C1: Type of conveyor attachment (moderate surface design)
• 9: Nine C1 attachments per strand (18 total attachments in the pair)

Complete Assembly Specifications:

• SKU: T2281
• Chain Size: 62 Steel Detachable
• Total Length: 9.93' per strand (matched pair)
• Total Links: 72 links per strand
• Number of C1 Attachments: 9 per strand (18 total)
• Attachment Spacing: 13.23" (every 8th link)
• Attachment Type: C1 (moderate surface conveyor attachment)
• Material: Cold-rolled, heat-treated steel detachable chain
• Chain Assembly Weight: 8.9 lbs per strand
• Average Ultimate Strength: 4,200 lbs
• Made in USA
• Matched pair - tagged for even operation

Key Features:

• USA manufactured for superior quality and consistency
• Matched pair tagged for even elevation and load carrying
• C1 attachments properly spaced every 13.23" for optimal material handling
• Cold-rolled, heat-treated steel for maximum strength and durability
• Ready to install - saves installation time
• Exact replacement for worn or damaged conveyor chains
• Compatible with standard bale elevator and conveyor systems
• 4,200 lbs average ultimate strength for reliable performance

What is a C1 Attachment?

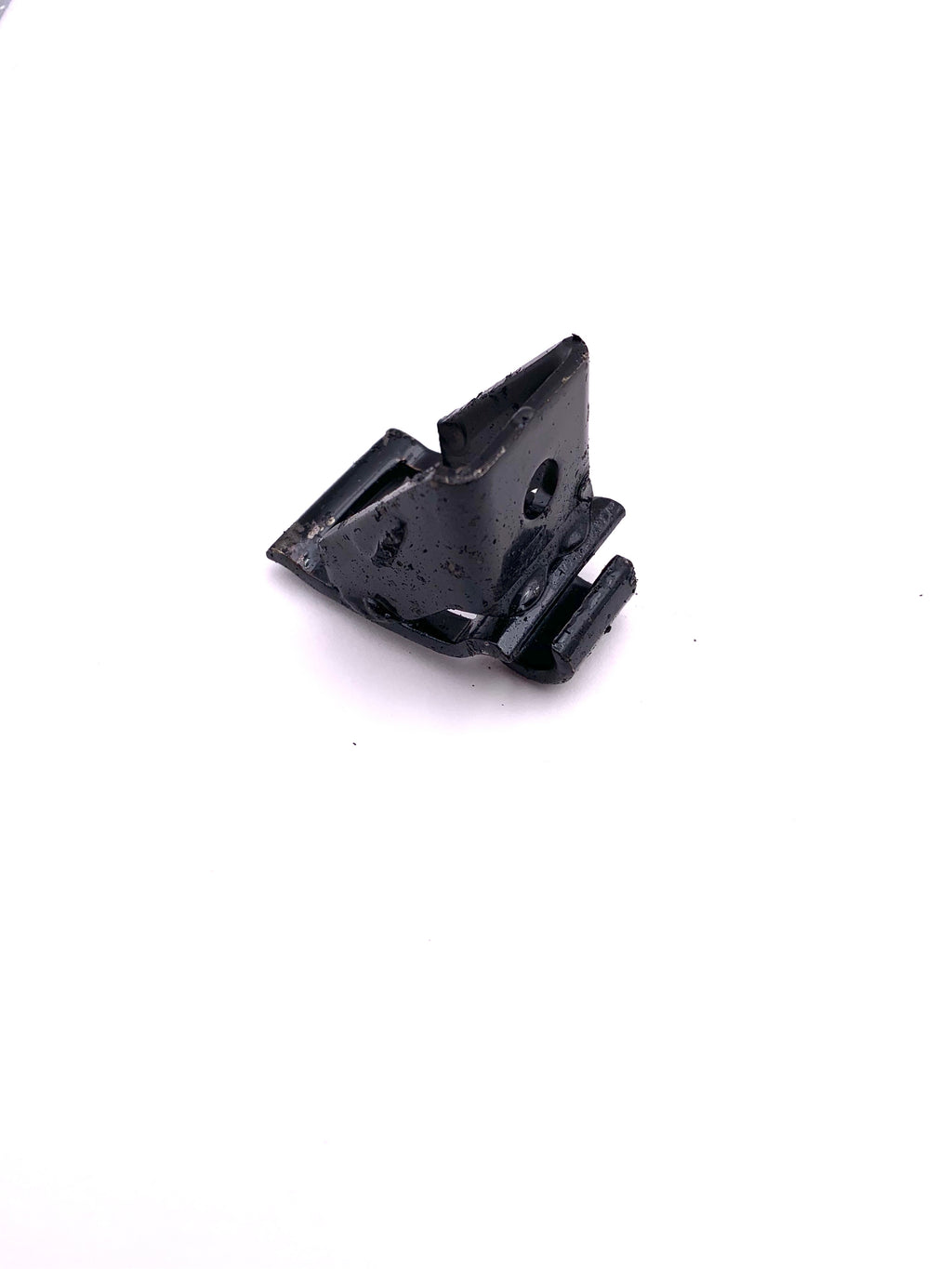

C1 attachments are specialized conveyor attachments with a moderate surface designed for welding or fastening slats that will be used to elevate hay bales or other materials. The C1 design provides a stable platform for mounting custom slats or crossbars in agricultural conveyor applications.

Technical Chain Dimensions:

• Pitch (P): 1.654"
• Dimension (M): 1.563"
• Dimension (E): 1.002"
• Dimension (D): 0.984"
• Dimension (T): 0.148" (Tolerance: +/- 0.007")

C1 Attachment Dimensions:

• Dimension (A): 1.438"
• Dimension (C): 1.281"
• Dimension (F): 0.469"
• Dimension (H): 1.781"
• Dimension (N): 0.266"
• Dimension (T): 0.105"

Applications:

• Bale elevators and hay conveyors
• Agricultural material handling systems
• Barn conveyor systems with custom slats
• Hay and feed transport equipment
• Replacement chain for existing conveyor systems

Why Choose Matched Pair Conveyor Chain?

Matched pair conveyor chains are essential for dual-strand systems where even operation is critical. Each pair is carefully matched and tagged to ensure both strands operate at the same speed and carry equal loads. This prevents uneven wear, binding, and premature failure. The C1 attachments are factory-installed at precise 13.23" intervals (every 8th link) for optimal material handling performance.

Superior Construction

What separates this chain from others is that it's manufactured using special cold rolled steel that has been heat-treated for maximum strength and durability. This premium construction ensures long-lasting performance season after season, even under the demanding conditions of continuous material handling.

Installation

This matched pair chain assembly installs just like replacing any dual-strand conveyor chain. Remove the old chains, install the new matched pair with the C1 attachments properly positioned, and adjust tension according to your system specifications. The detachable chain design allows for easy installation without special tools.

Replacement for Worn Chains

If your conveyor chains are worn, stretched, or have damaged attachments, this matched pair provides an exact replacement. The 9.93' length with 72 links and 9 C1 attachments per strand (spaced every 13.23") is a common configuration for many bale elevator and conveyor systems.

Expert Help from the Midwest

Based in the heart of American agriculture, we bring over 17 years of hands-on experience specializing in agricultural chain systems and conveyor equipment. Need help verifying this is the right chain for your system or have questions about installation? Call us at 815-973-2648 or 800-648-5429. We're here to help you find the right solution.

Part Details:

• SKU: T2281
• Country of Origin: USA

Matched pair conveyor chain - ready to install. USA made quality for reliable performance season after season.
